Wastegate

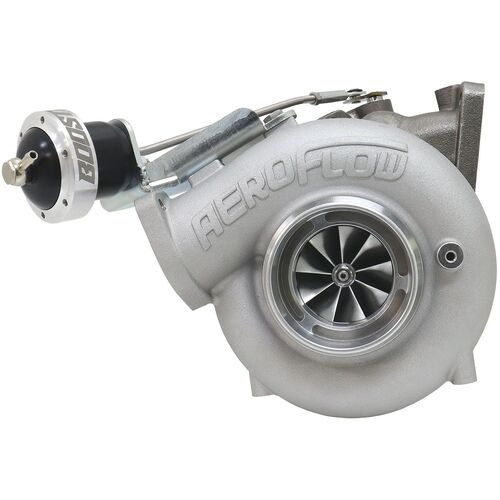

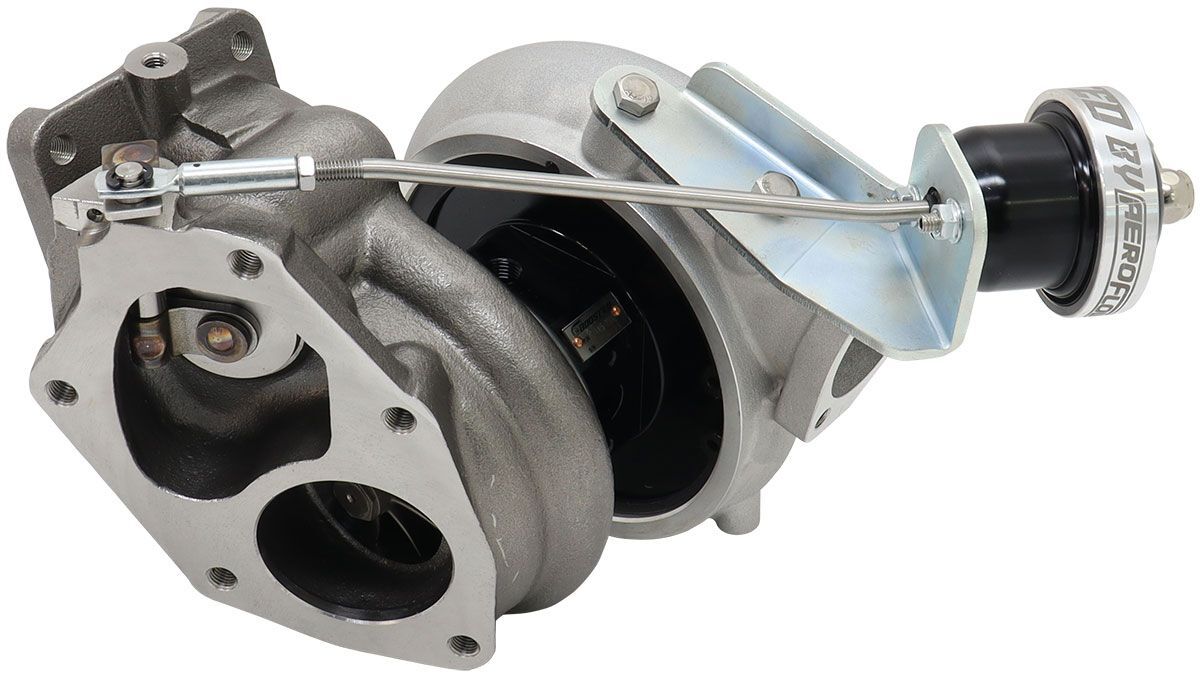

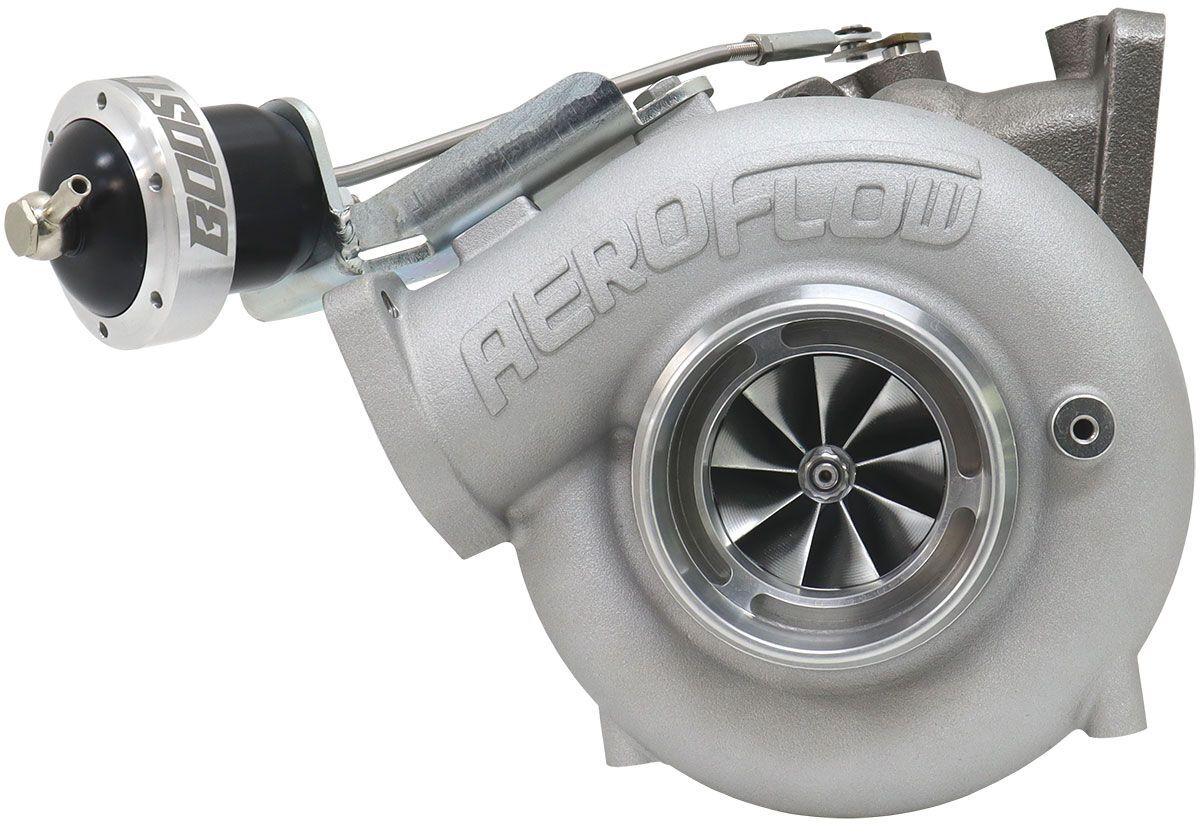

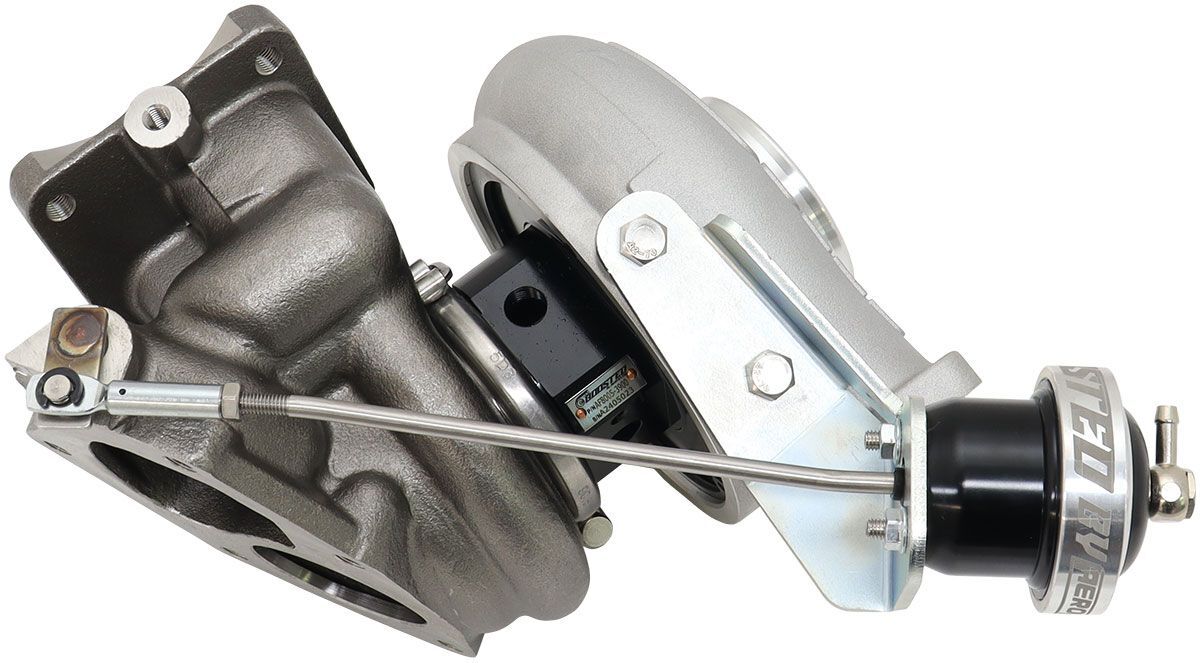

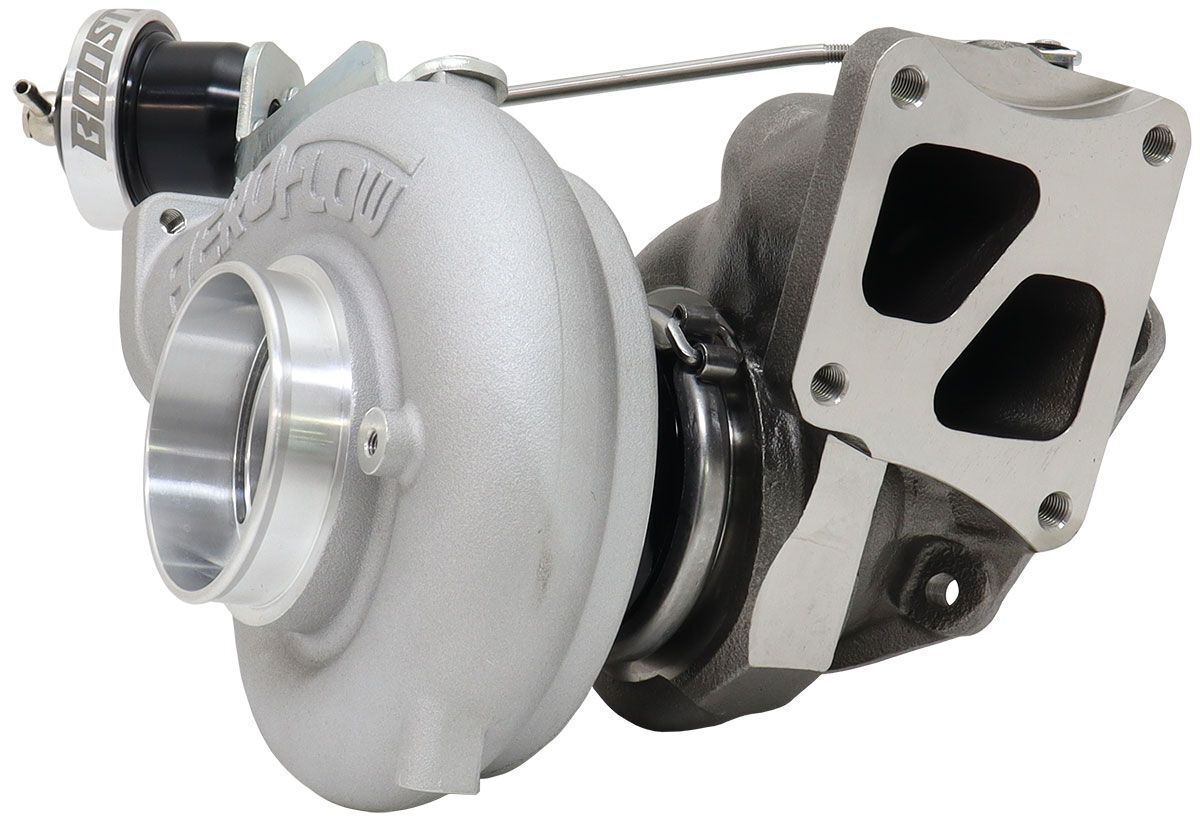

Internal wastegate with 20psi actuator BOOSTED 5858 Mitsubishi EVO Turbocharger Specifications
Recommended horsepower rating: 400-600HP
Recommended engine displacement: 2L to 2.5L
- Dual ceramic ball bearing
- Billet aluminium compressor wheel
- Slip On compressor cover inlet (3")
- Mitsubishi 2 Bolt compressor cover outlet
- Mitsubishi 4 Bolt turbine inlet flange
- Mitsubishi 5 Bolt turbine outlet flange
- Will suit standard coolant lines or M14 x 1.50mm coolant fittings sold separately
- Will suit standard turbo drain or turbo drain adapter (Sold separately, AF463-01 or AF463-05)
- Stainless Steel rear housing
- M14 x 1.50mm coolant fitting port thread
- 7/16"-24 oil feed fitting with in-built restrictor in turbocharger core
- 38mm bolt centre turbo drain plate with M8 x 1.25mm thread size
- Internal wastegate with 20psi spring and 33mm Hole
Compressor Specifications
Inducer: 58mm
Exducer: 82mm
Extended Tip: 89mm
Compressor Inlet: 3" Slip On
Compressor Outlet: Mitsubishi 2 bolt
Turbine Specifications
Inducer: 66mm
Exducer: 58mm
A/R: 10cm
Turbine Inlet Flange: 4 Bolt Mitsubish
(AF8005-3900)
SKU | AF8005-3900 |
Brand | Aeroflow |
Shipping Weight | 7.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.400m |
Shipping Length | 0.350m |
Shipping Cubic | 0.042000000m3 |
