Part Number: MM022HD

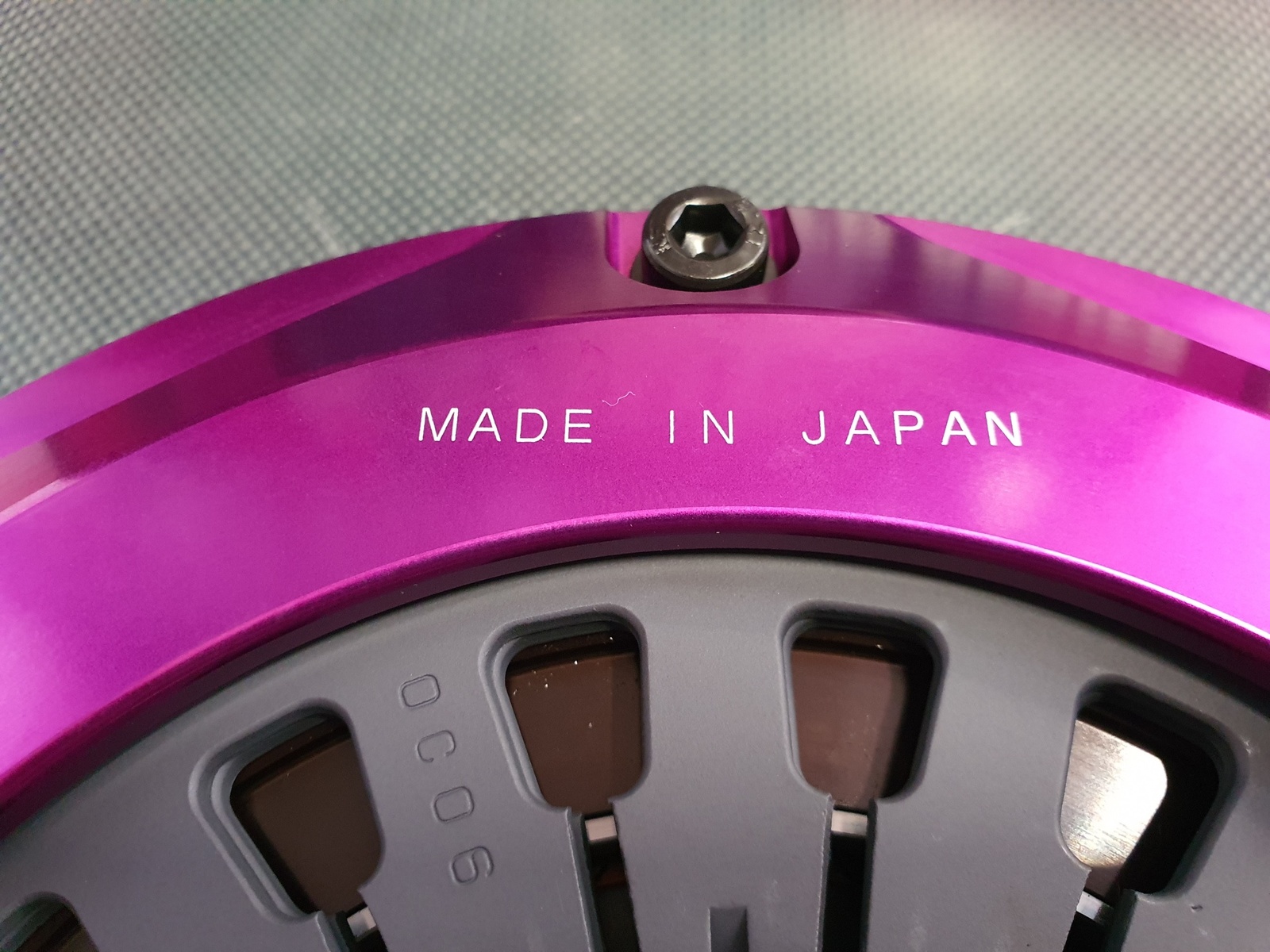

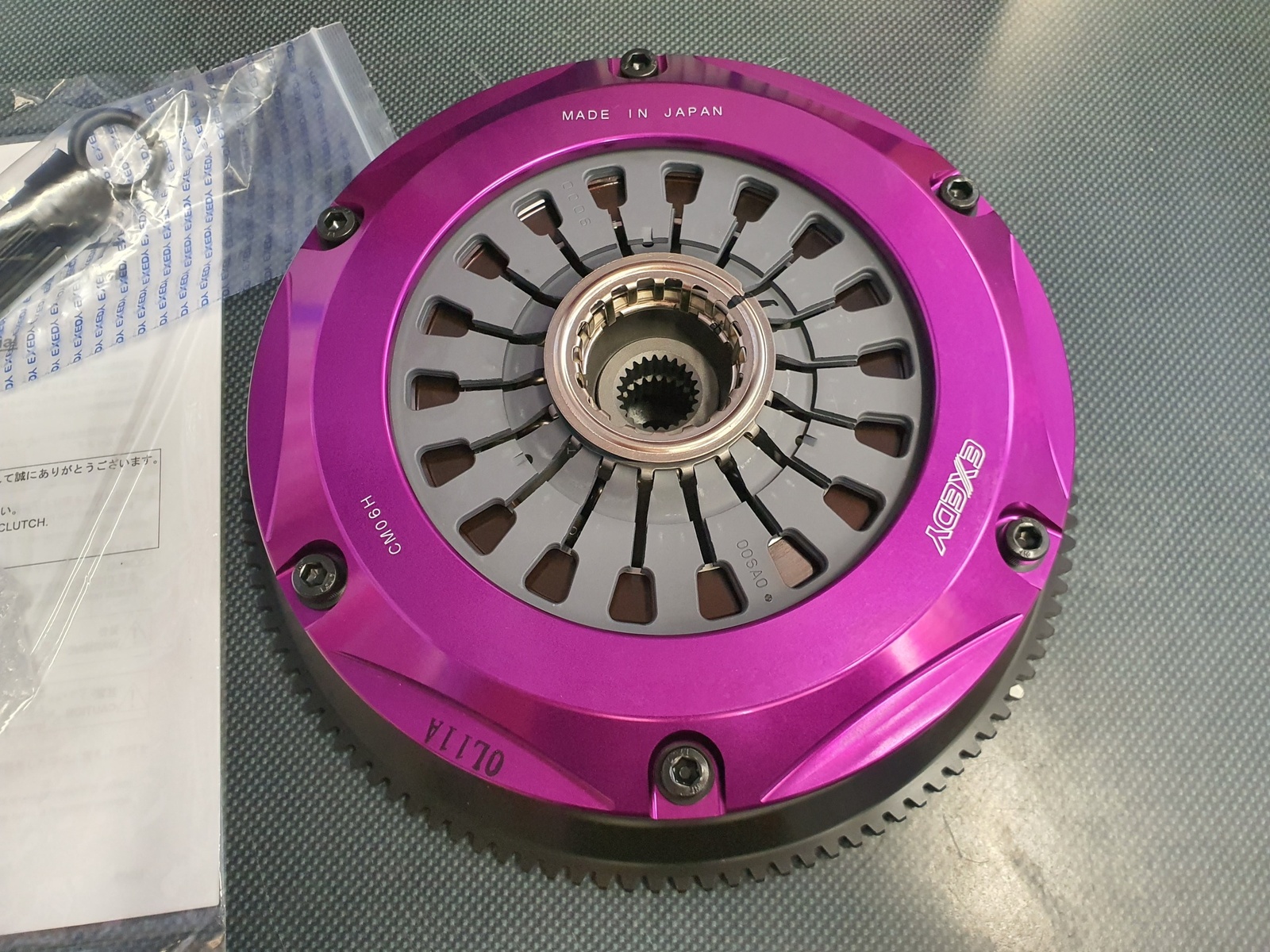

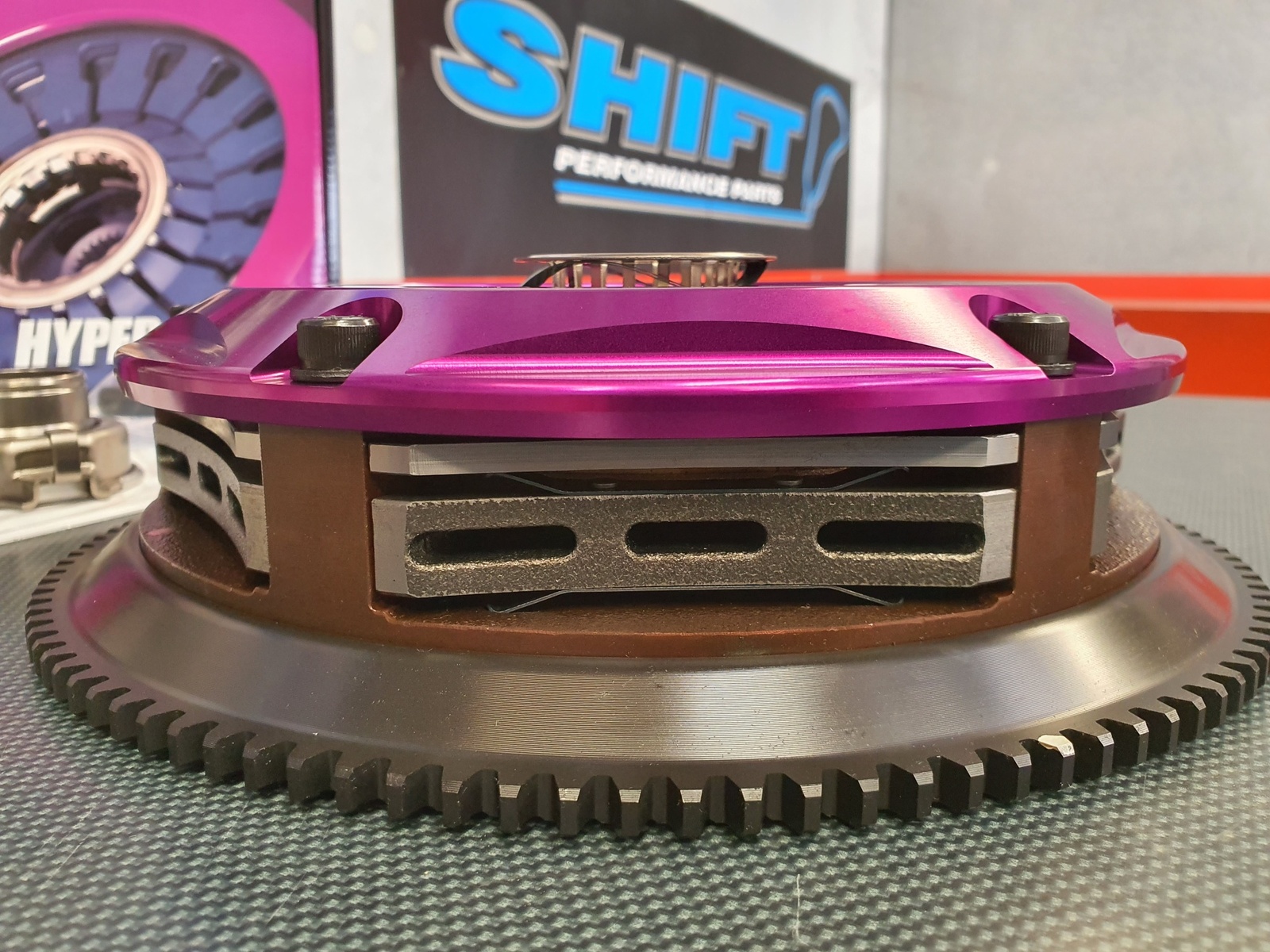

For high-powered applications EXEDY offers Multi plate clutches. These are designed for hot street action as well as drag, road, and rally racing. EXEDY comes with lightweight chromoly steel flywheel, and the famous purple anodized forged aluminium clutch cover.

All have T5001 cerametallic friction materials for extreme heat resistance. The multi plate clutches are rated up to 800+ foot pounds of torque at the flywheel. And come with spring damper or solid discs depending on the application.

 Specs:
Disc Size 200mm
Spline Teeth / Major Dia 23T / 26.2mm
Clamping Force/Load 1200kg
Disc Material Ceramic
Number of Disc Twin
Type (Push/Pull) Pull
Sprung Center (D-core) Yes
Clutch Torque 1106
Torque Capacity at Wheels 615
Flywheel to Crank Bolt ft-lb 99
PP Assby. to Flywheel ft-lb 23

Suitable For Driving Styles:
•Street
•Time Attack Circuit Track
•Drag Race
•Auto Cross Rally

(MM022HD)

SKU MM022HD
Brand EXEDY
Shipping Weight 15.0000kg
Shipping Width 0.360m
Shipping Height 0.150m
Shipping Length 0.360m
Shipping Cubic 0.019440000m3
