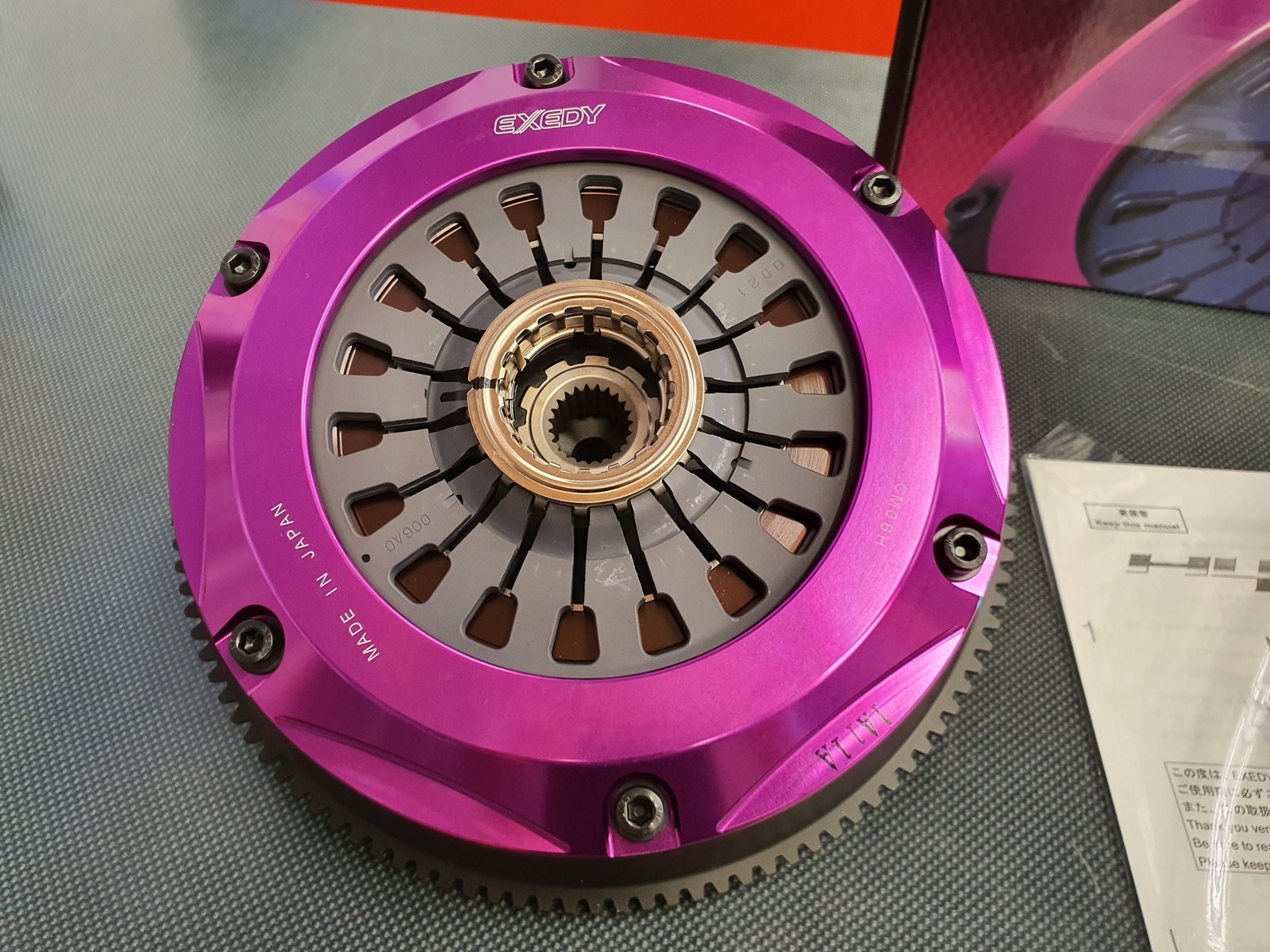

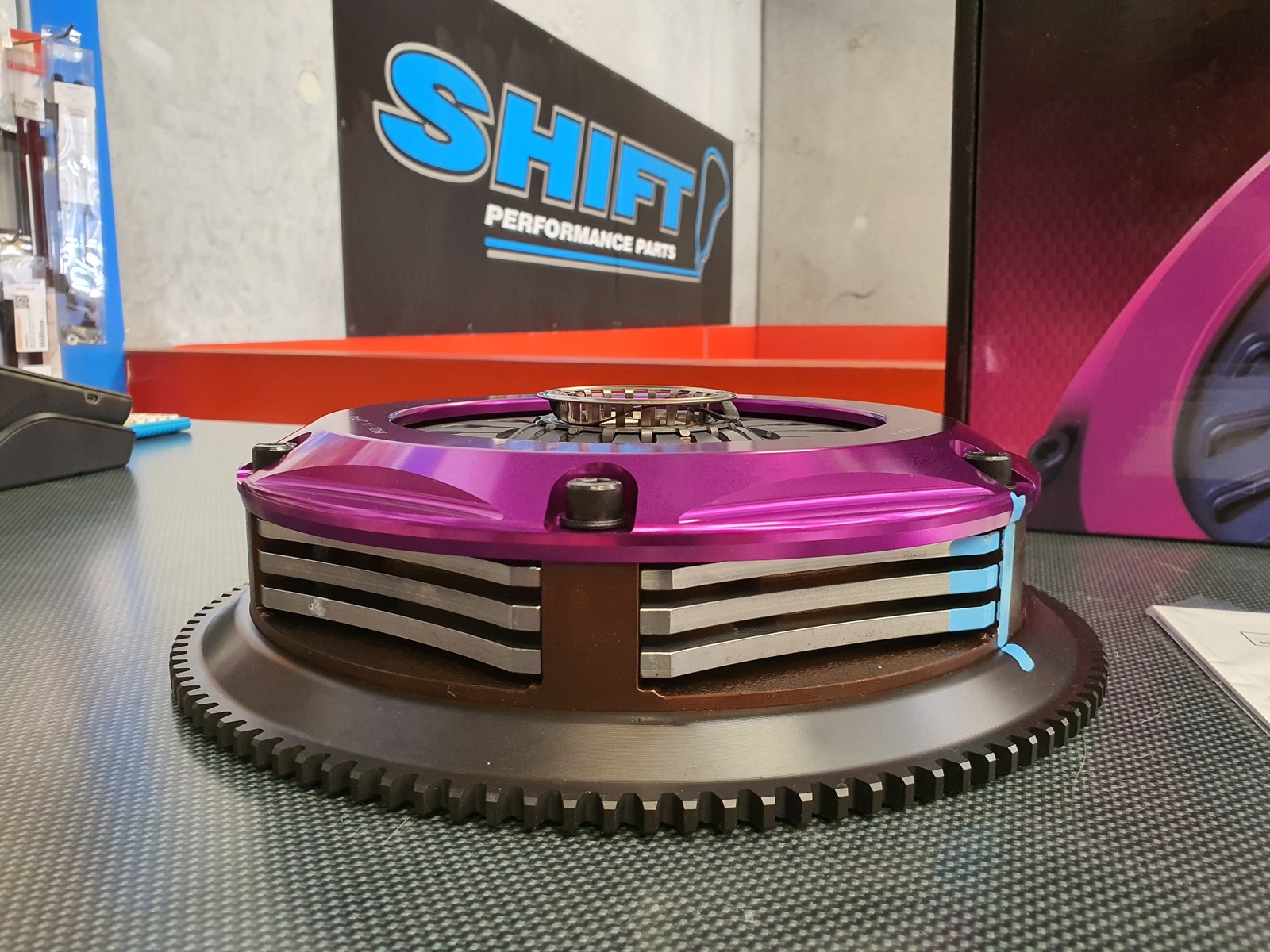

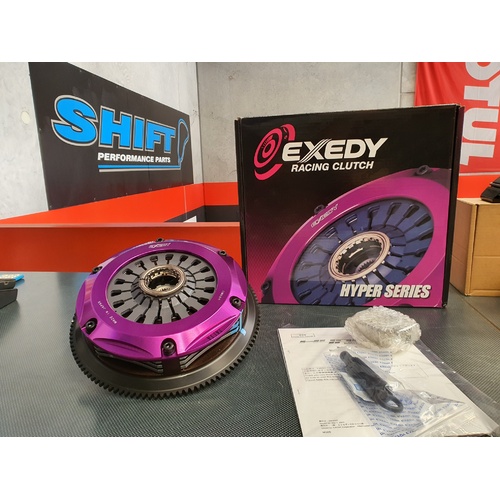

The EXEDY HR Triple plate clutch is for the serious EVO enthusiest chasing maximum power and performance about 400kw.

For high-powered applications EXEDY offers Multi plate clutches. These are designed for hot street action as well as drag, road, and rally racing. EXEDY comes with lightweight chromoly steel flywheel, and the famous purple anodized forged aluminium clutch cover.

All have T5001 cerametallic friction materials for extreme heat resistance. The multi plate clutches are rated up to 800+ foot pounds of torque at the flywheel.



Specs:
Disc Size 200mm
Spline Teeth / Major Dia 23T / 26.2mm
Clamping Force/Load 1200kg
Disc Material Ceramic
Number of Disc 3
Type (Push/Pull) Pull
Rigid Disc Type
Clutch Torque 1106
Torque Capacity at Wheels 615
Flywheel to Crank Bolt ft-lb 99
PP Assby. to Flywheel ft-lb 23

Note: Recommended to be fitted with new ARP flywheel bolts and ACT monolock collar.

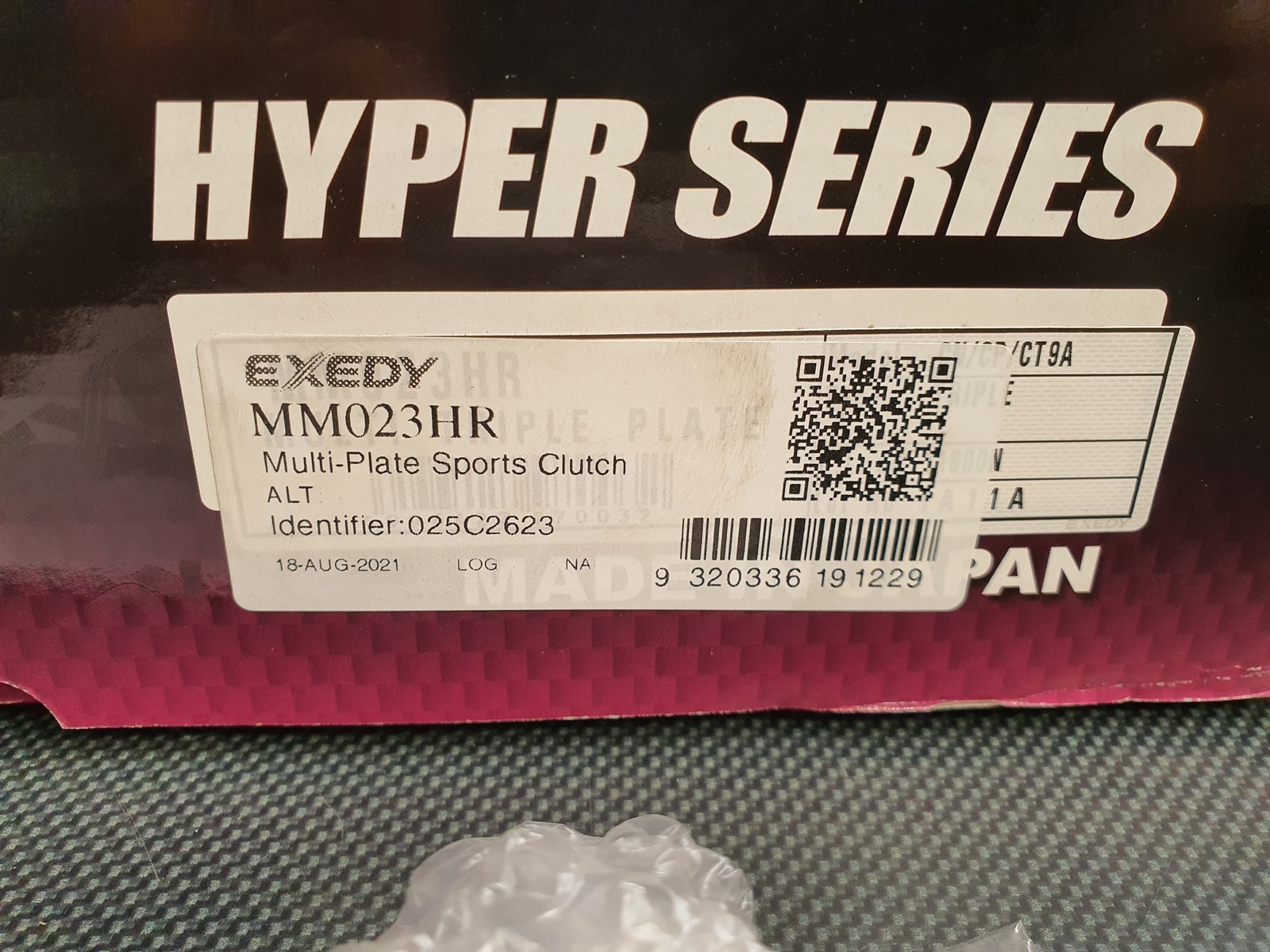

(MM023HR)

SKU MM023HR
Brand EXEDY
Shipping Weight 15.0000kg
Shipping Width 0.360m
Shipping Height 0.150m
Shipping Length 0.360m
Shipping Cubic 0.019440000m3
