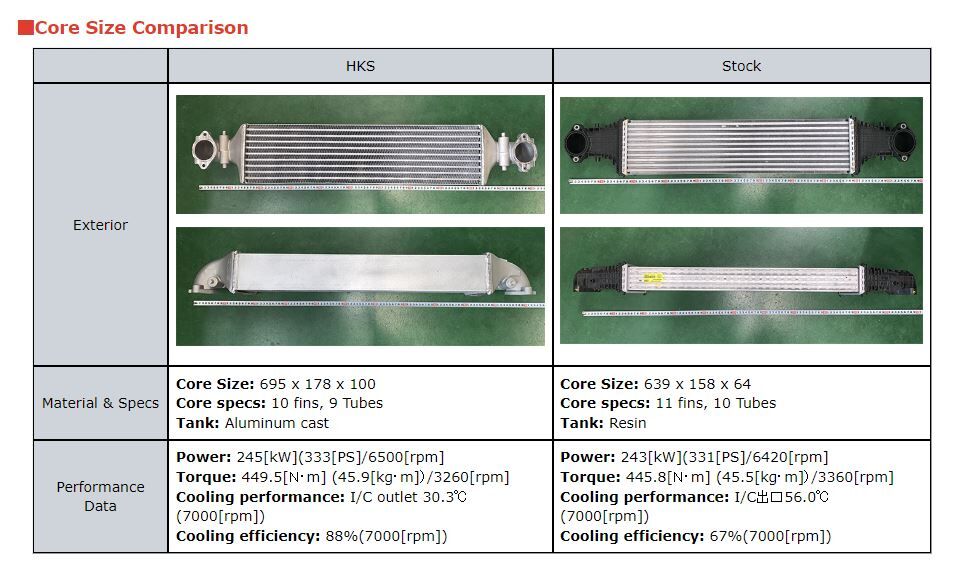

Intercooler Core

• A huge 22.4% increase in core’s area leads to immense improvement in cooling
• The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade
• The core is designed to be also installed with OEM piping

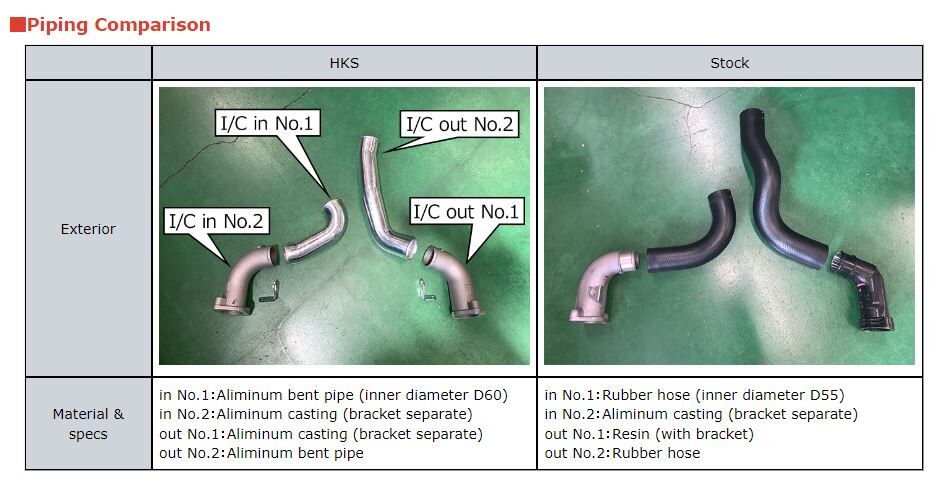

Piping Kit

• Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output
• The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion

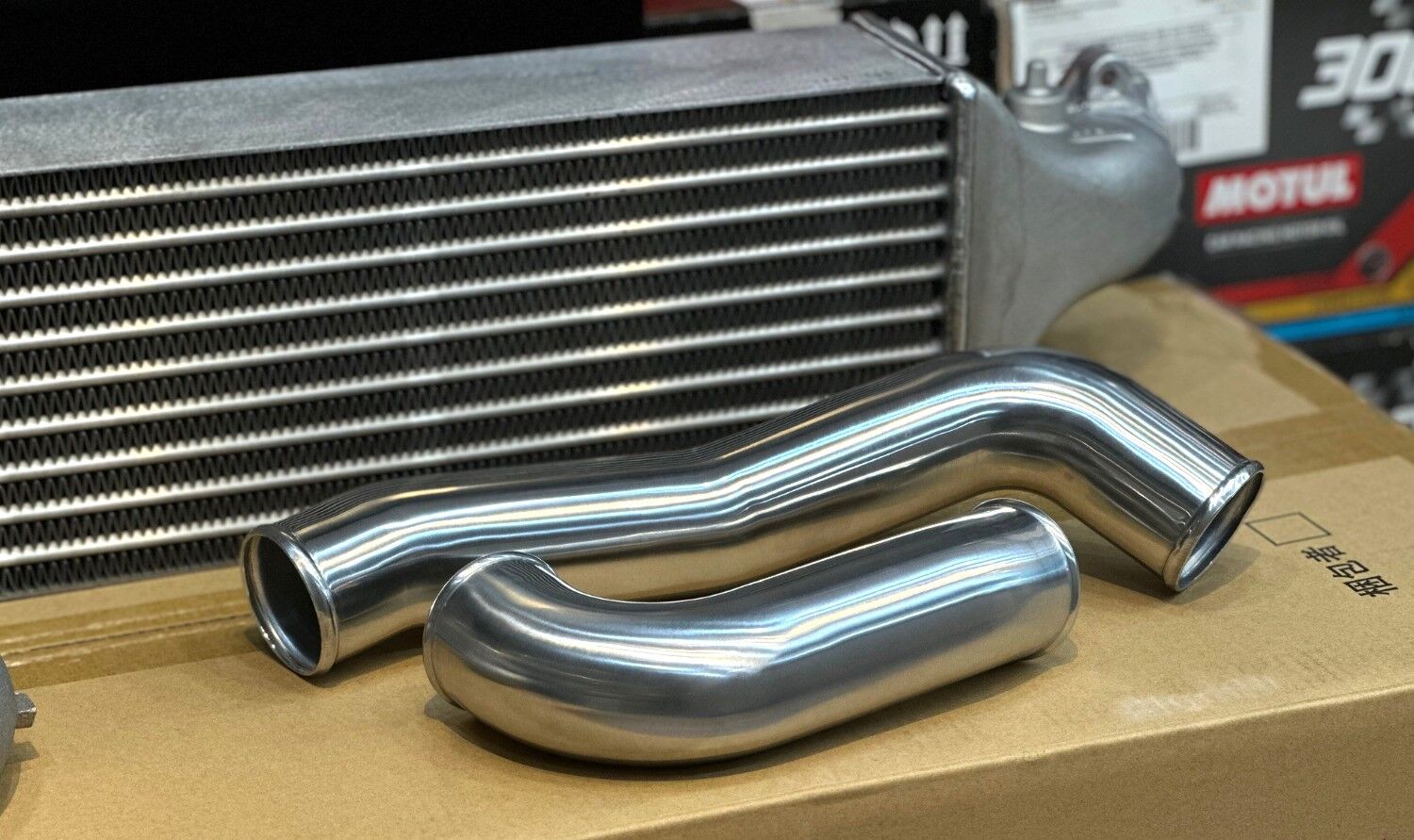

• The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look

Description

The HKS Front Mount Intercooler & Piping Kit is engineered to maintain optimal charge air temperatures for enhanced engine performance and protection, particularly under high-stress conditions. Designed with a high-efficiency core and precision components, this kit improves air cooling capabilities. Ideal for performance-driven vehicles and motorsport applications, it ensures consistent power delivery and reliability during intense driving.

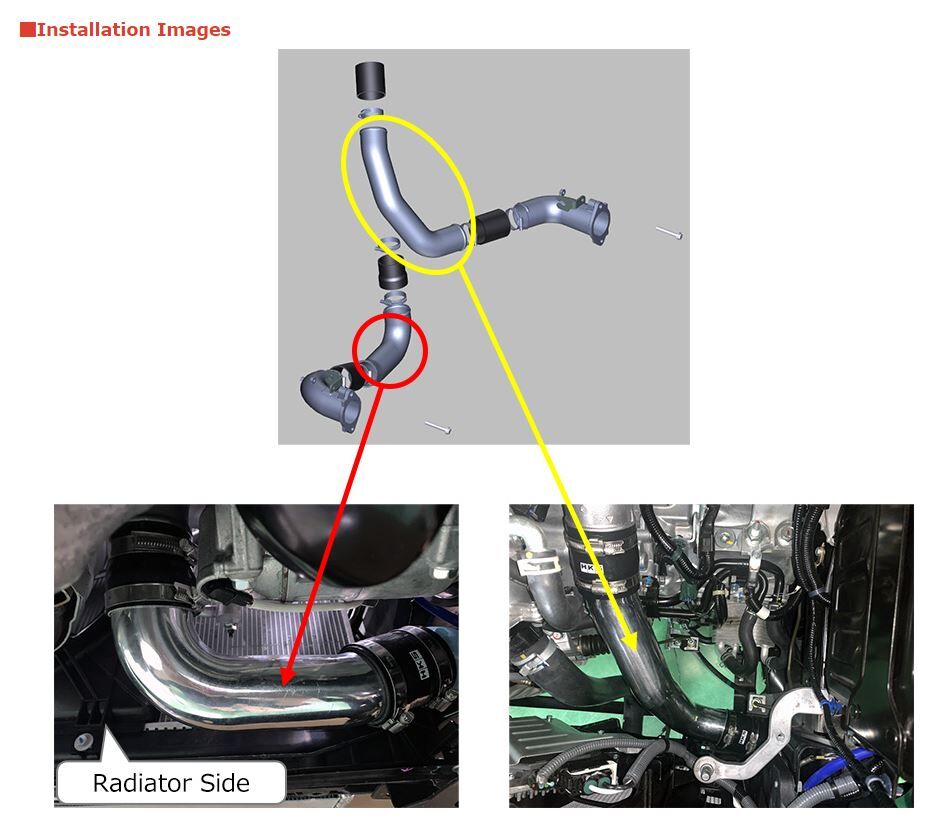

Installation Guide.

https://www.hks-power.co.jp/product_search/product/download/5521/ja_en/13001-AH007.pdf
