The ID1050x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

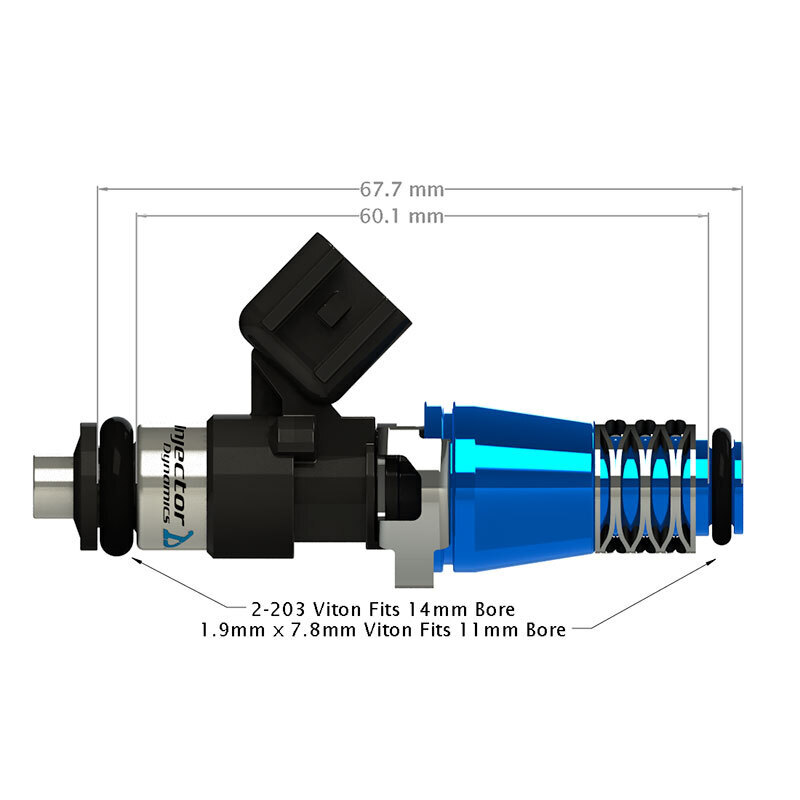

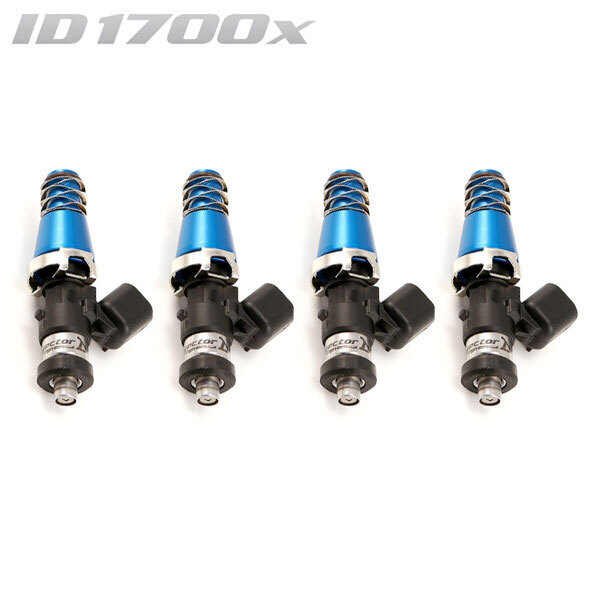

  • Set of 4, 60MM Length, 11MM Blue Adaptor Top, Denso Lower Cushion
  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
  • Electrical Connector: USCAR



(1050.60.11.D.4)

SKU 1050.60.11.D.4
Brand Injector Dynamics
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
