Features:

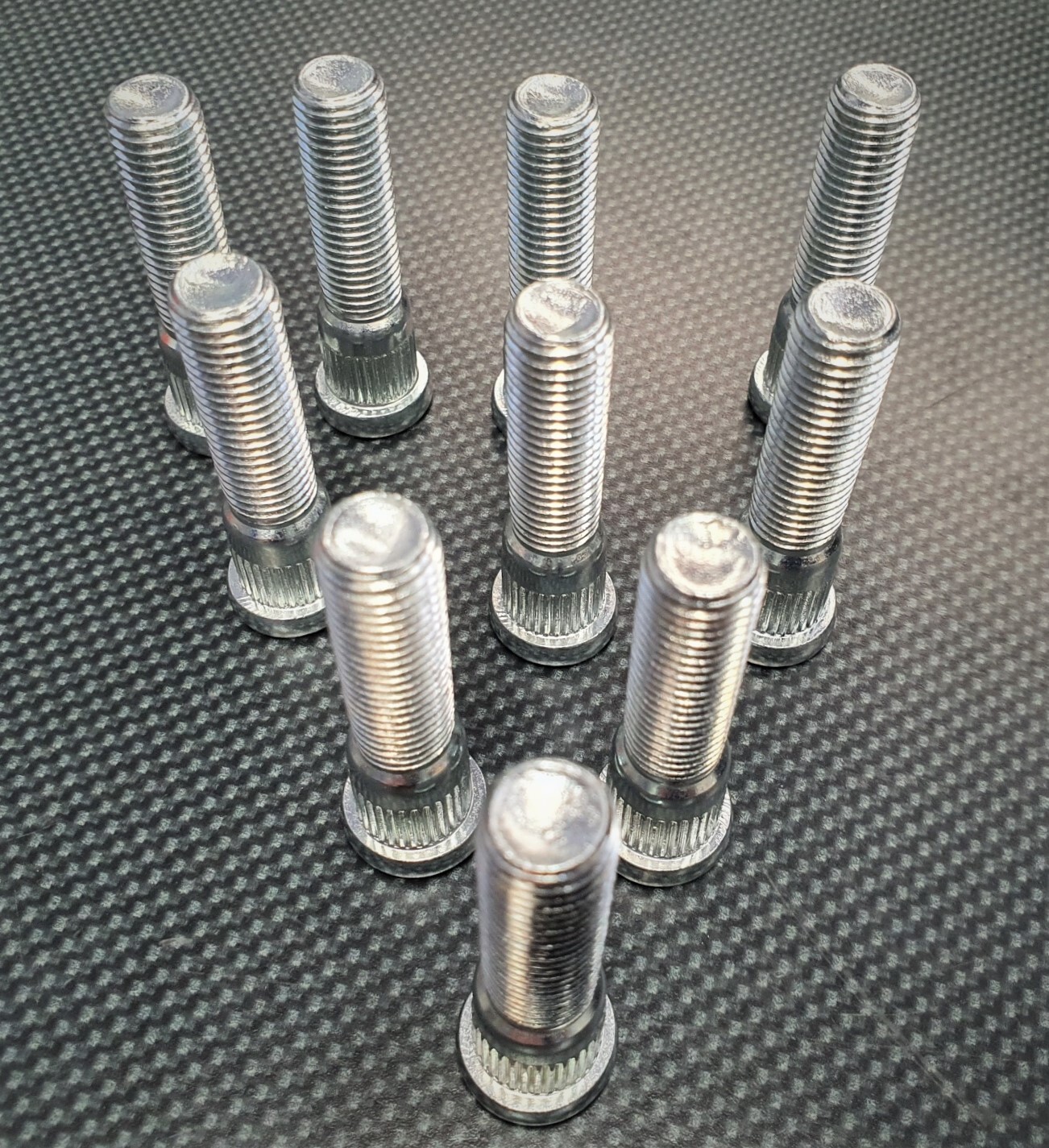

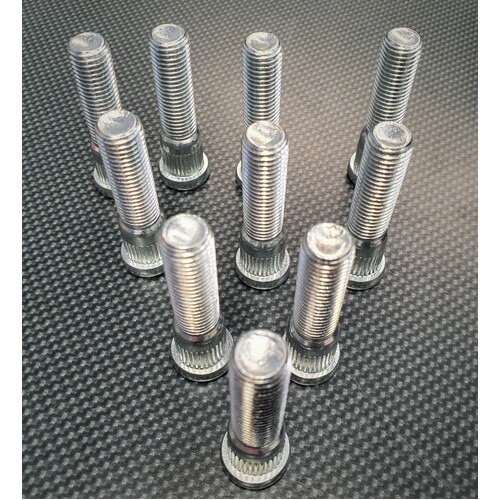

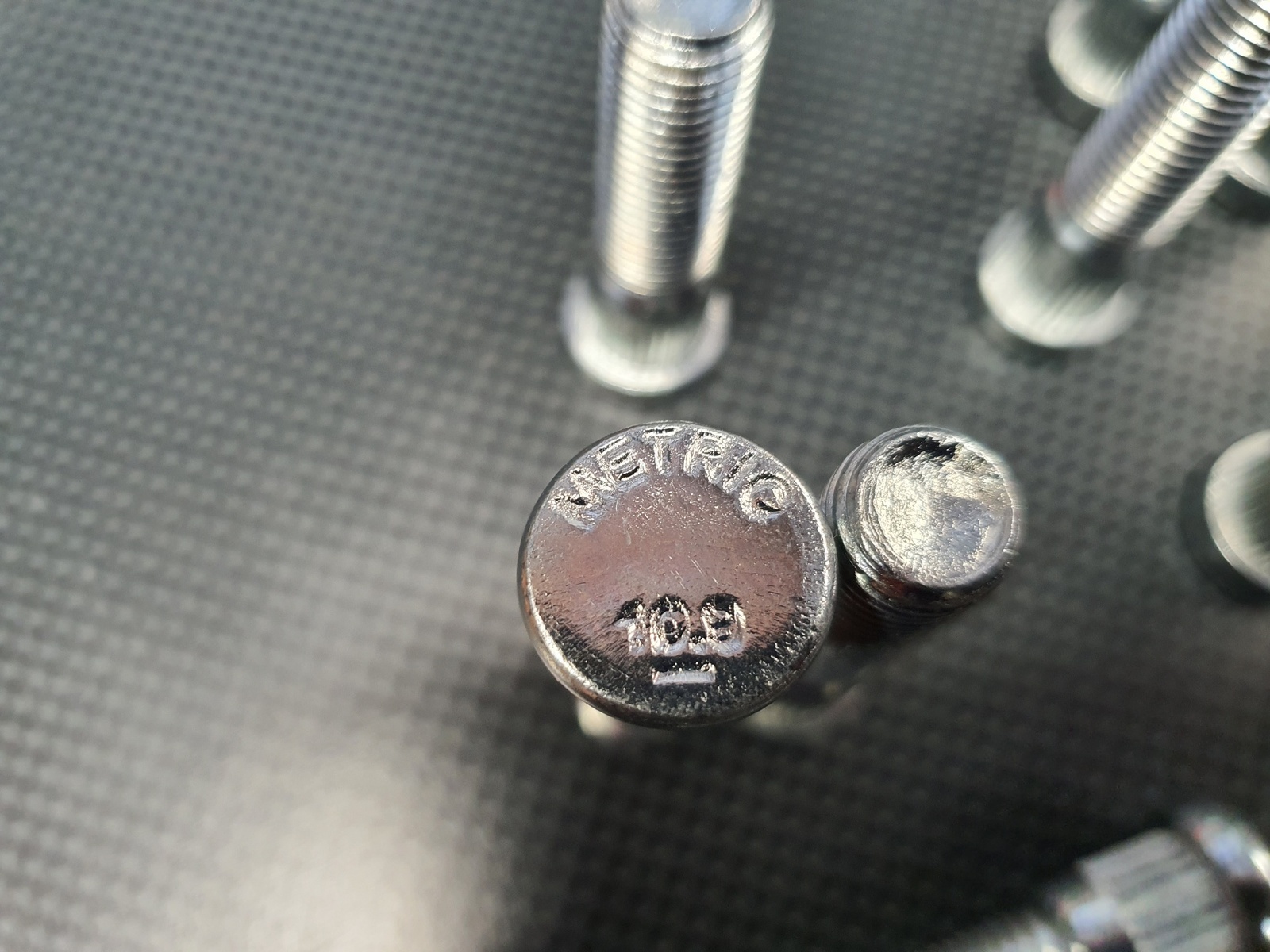

  • 10 x Grade 10.9 high tensile extended studs
  • Size: M12 x 1.5P

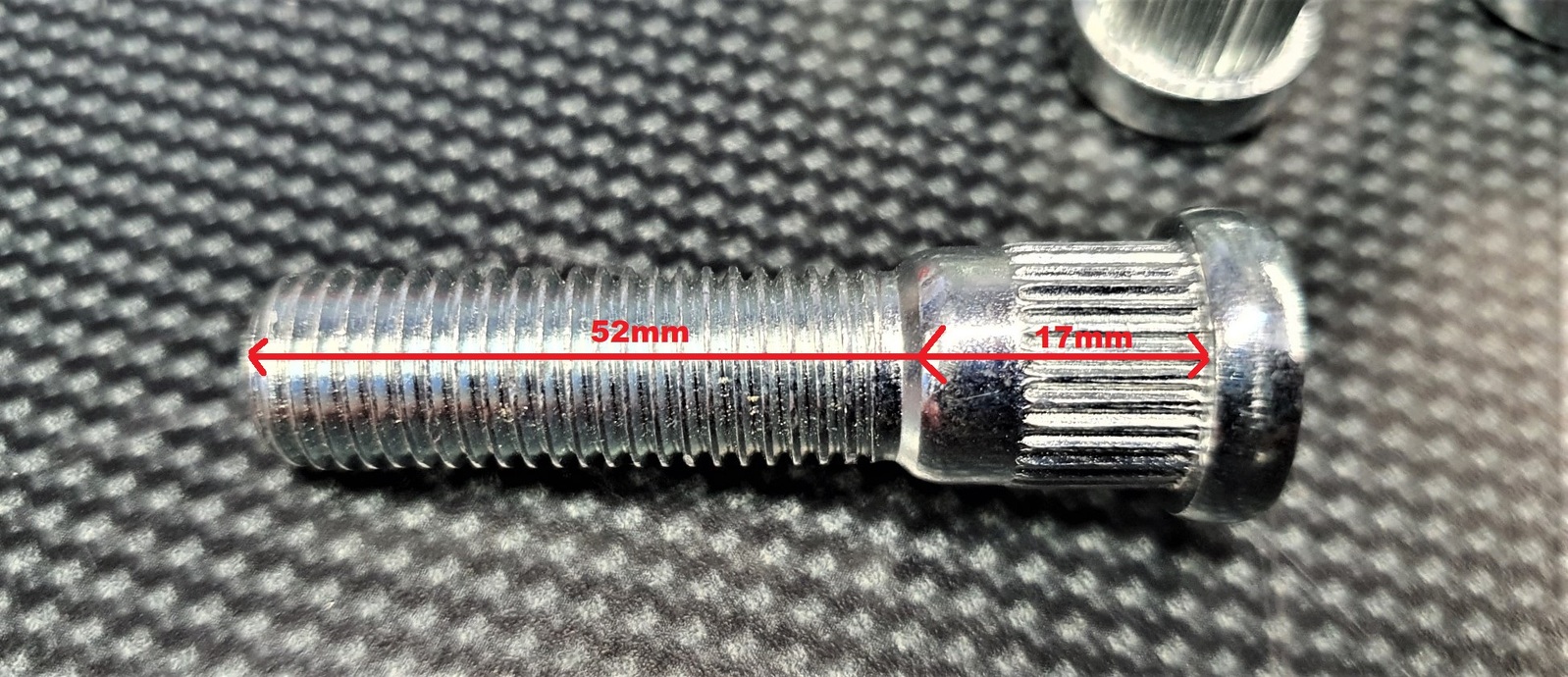

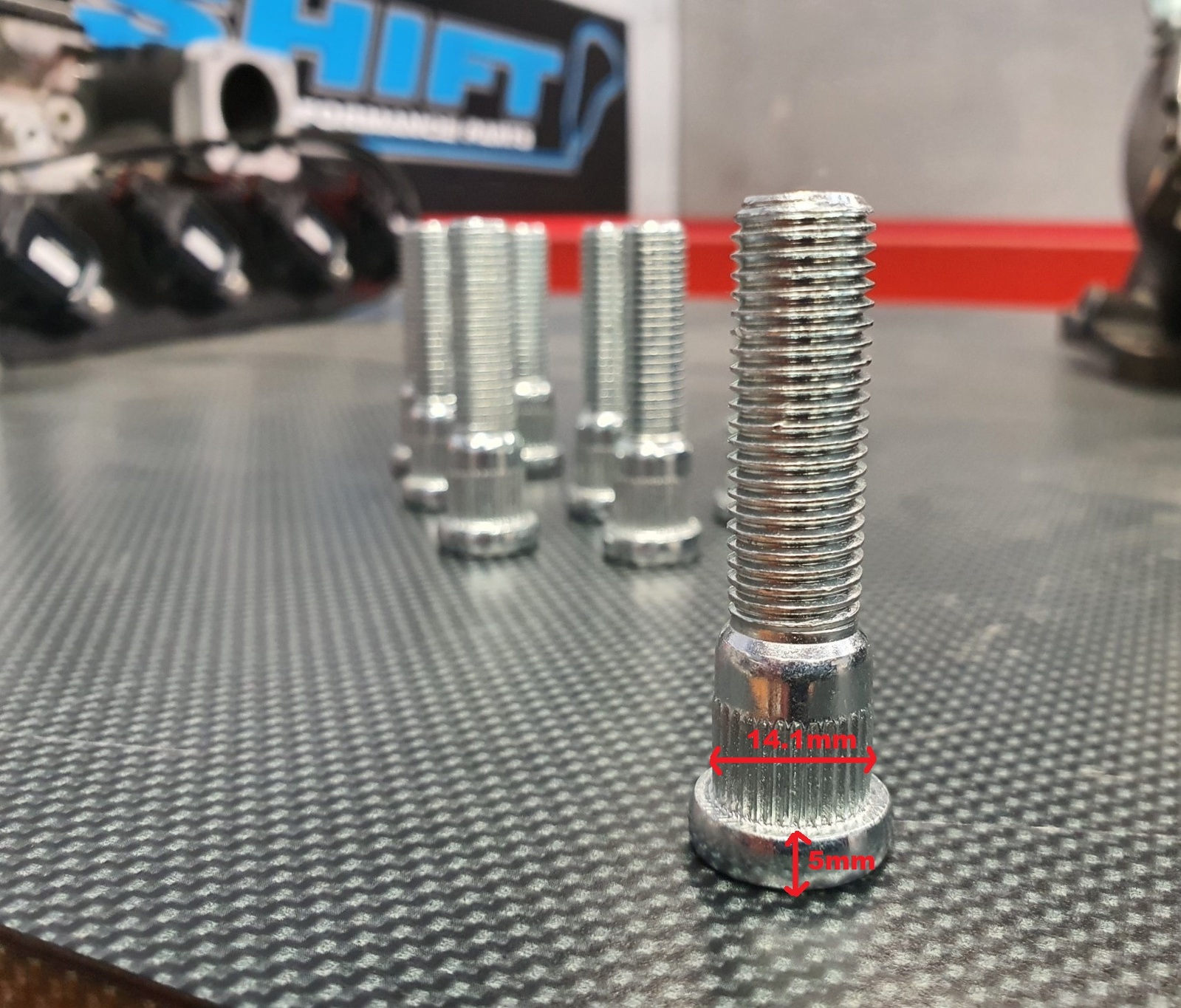

  • Length 52mm, Knurl diameter 14mm approx.
  • Design to work with SPP 5mm and 10mm spacers.
  • Note: Knurl length is 17mm and some rotor holes may need to be drilled out for the knurl to pass through, or the knurl end diameter machined down.

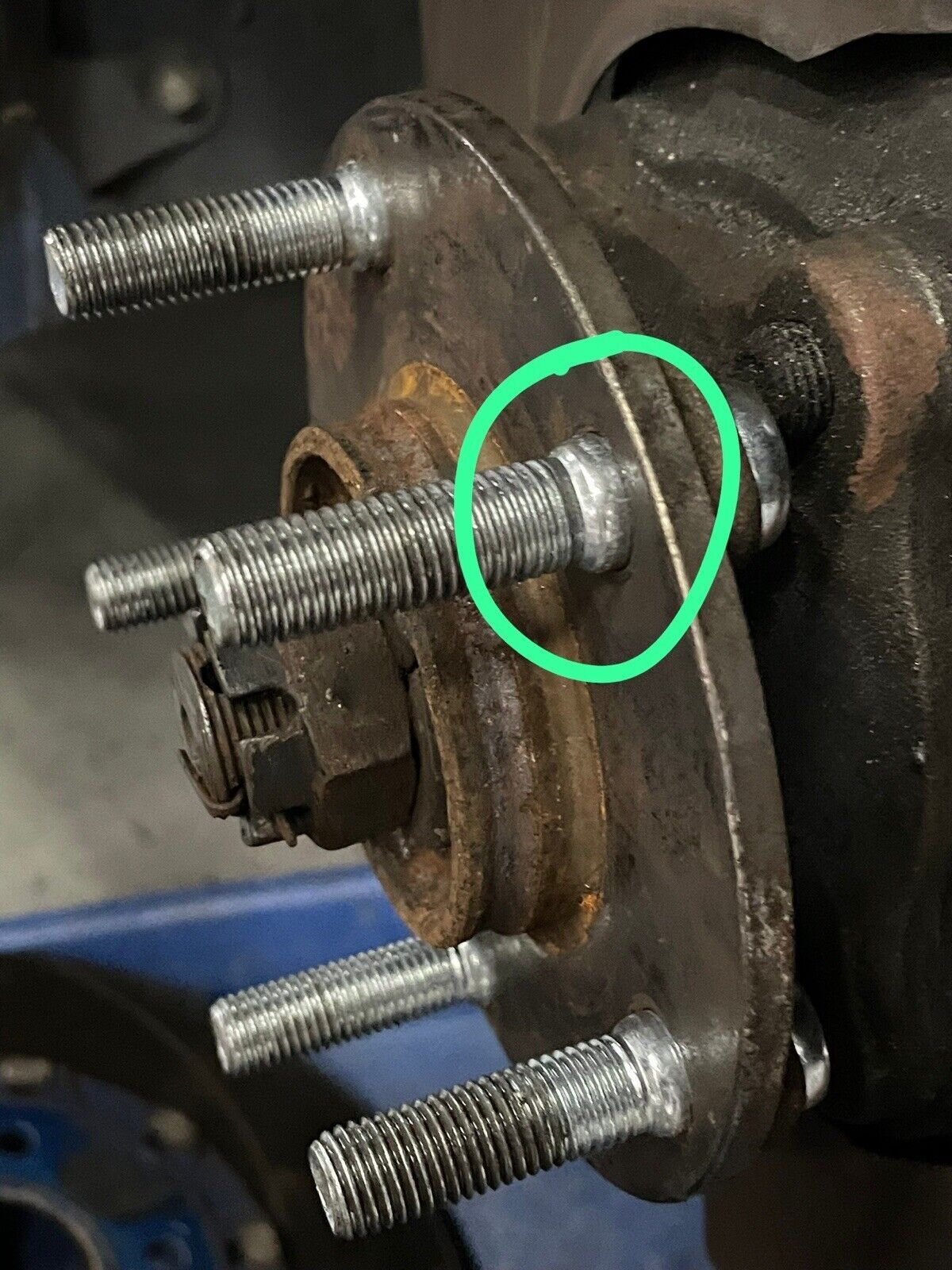

Note: RX7 FD Hub holes will have to be drilled out slightly for the 14mm knurl to press in tightly. Please refer to the picture provide for the dimensions of the extended studs before placing an order, as we do not accept returns for incorrect choice or change of mind. For proper installation the studs must be pressed into the hub.



(SPPSTUDS67.1)

SKU SPPSTUDS67.1
Brand SPP
Shipping Weight 1.0000kg
Shipping Width 0.160m
Shipping Height 0.100m
Shipping Length 0.160m
Shipping Cubic 0.002560000m3
