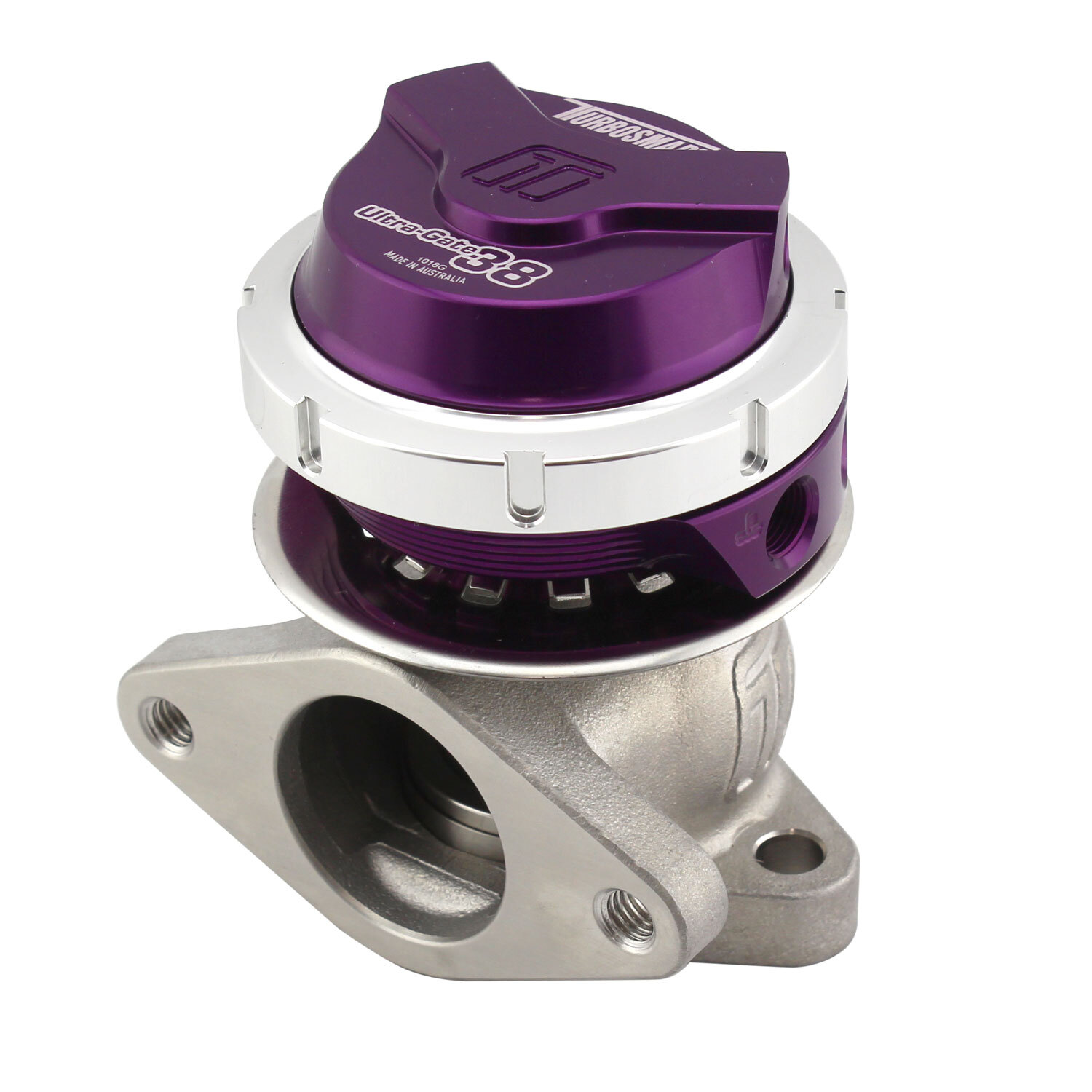

The Gen-V WG38 Ultra-Gate38 External Wastegate is a cost effective, high performing 38mm external wastegate designed for bolt on solutions where the 2-bolt flange is utilised.
The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
A direct fit upgrade to all 4th-generation Turbosmart wastegates and features Turbosmart's unique collar-locking system, variable actuator cap and base, classic 2 bolt flanges (71mm spacing), liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.
Product features summary:
- Liquid cooling provision
- User adjustable actuator position
- Modular actuator design
- Suitable for 2 bolt flange applications (71 mm spacing).
Included in the Box:
- Wastegate unit (pre-assembled with spring as per order)
- SS316 Valve seat
- WG38 SS manifold gaskets
- Mounting Bolts and Nuts
- Collar tool (master/slave)
- 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
- 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
- Sticker
- Instruction card
(TS-0551-1013)
SKU | TS-0551-1013 |
Brand | Turbosmart |
Shipping Weight | 0.5000kg |
Shipping Width | 0.200m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
Shipping Cubic | 0.004000000m3 |
