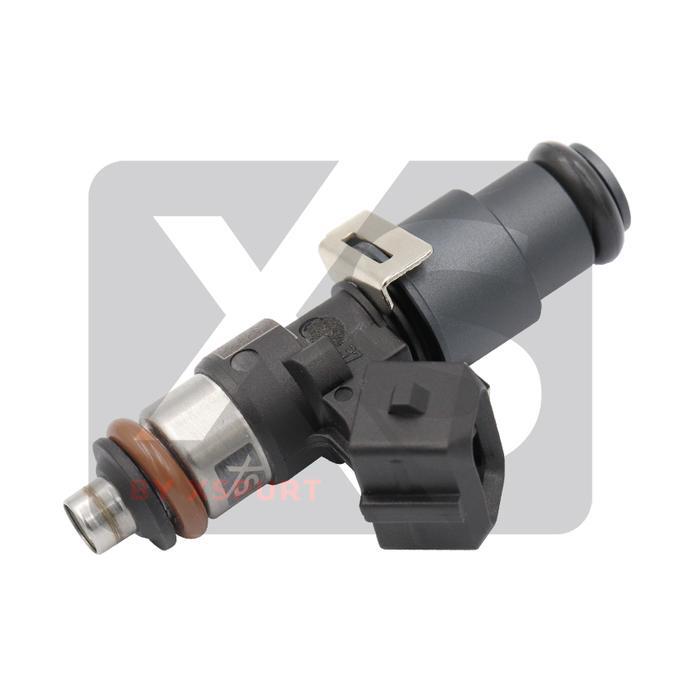

XS Injectors eXact Match - The Worlds Most Accurate Injector Sets

A full set of 8 XS Injectors with everything you need for a direct fit.

Suits: EVO X (Evo 10)

Wiring

Comes with assembled connectors with wires attached (pigtails). You can crimp or solder these on to the existing wiring harness.

Why XS?
Tight Testing Controls

All XS Injectors are tested to J1832 standards.

• Pressure is electronically controlled at 3 bar
• Temperature is controlled at 21°C
• Votage is controlled at 14V

Exact Match Data

Every set is:

• Dynamically flow matched within 1%
• Deadtime matched within 2%

How many points are tested?

• over 6,500 flow points are tested and recorded on every injector.
• over 265,000 measurements for flow, pressure, voltage etc are recorded for every injector
• tuning data specific to your set is available for download to make an easy tune

Lifetime Guarantee

If an injector has an issue not related to contamination or damage from external forces we simply replace the injector for you. It's that easy.

Specs

Brand:   XS
CC Rating:   1500cc
Ohms (Resistance):   High
Length (o-ring to o-ring):   55mm - 3/4 Length
Top O-Ring Diameter:   14mm
Comes with:   6 wiring pigtails, 6 height extensions
