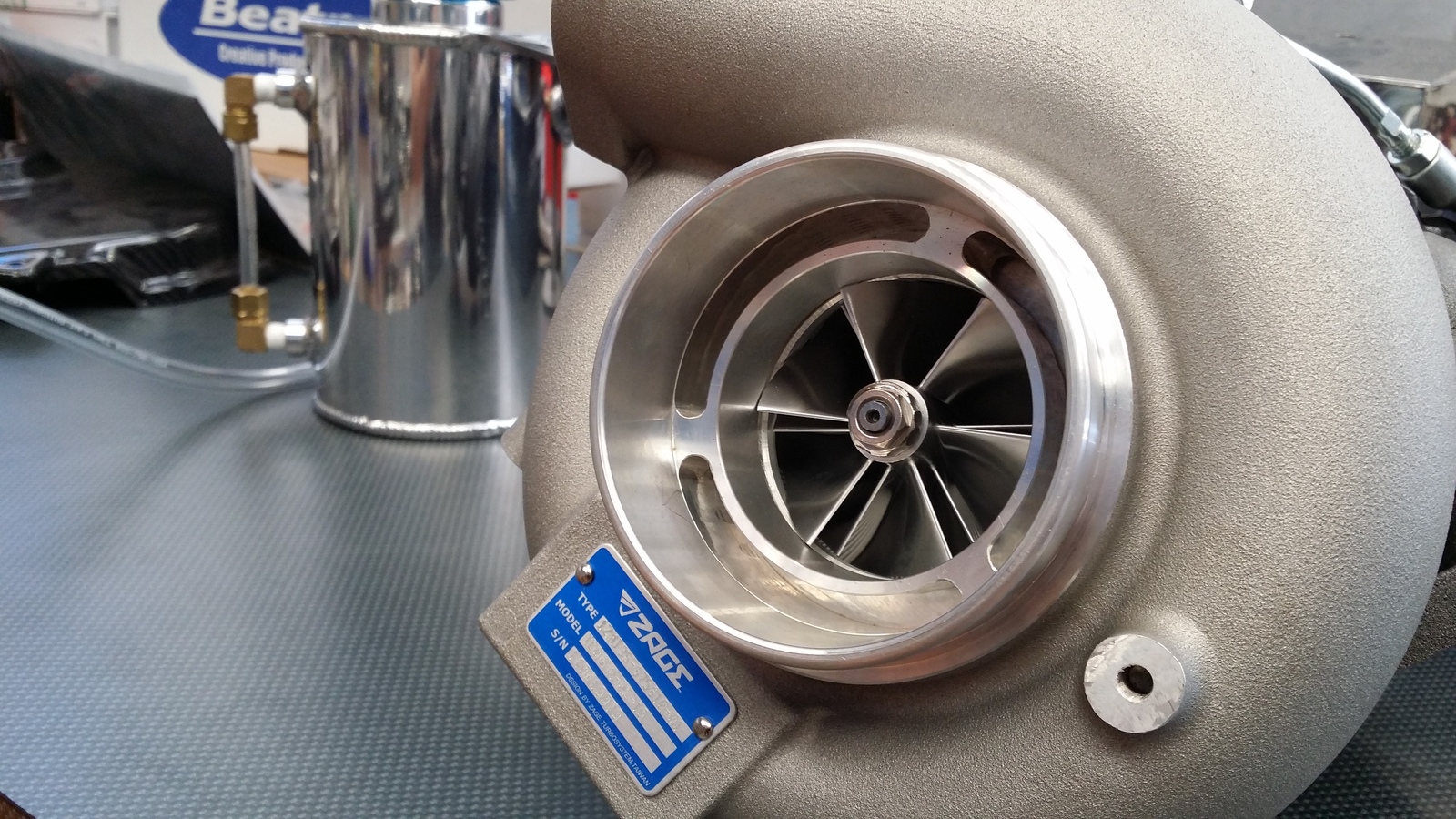

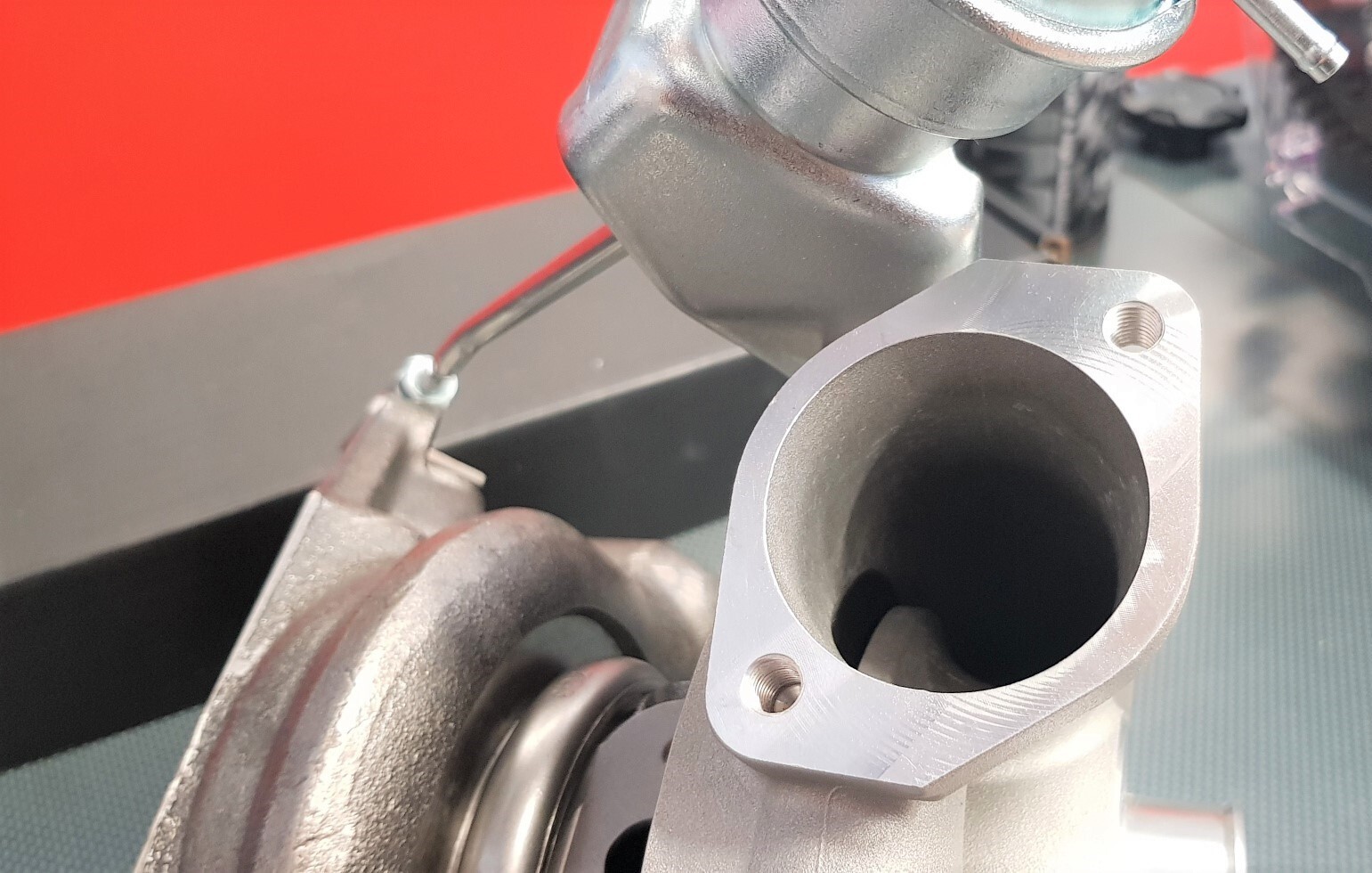

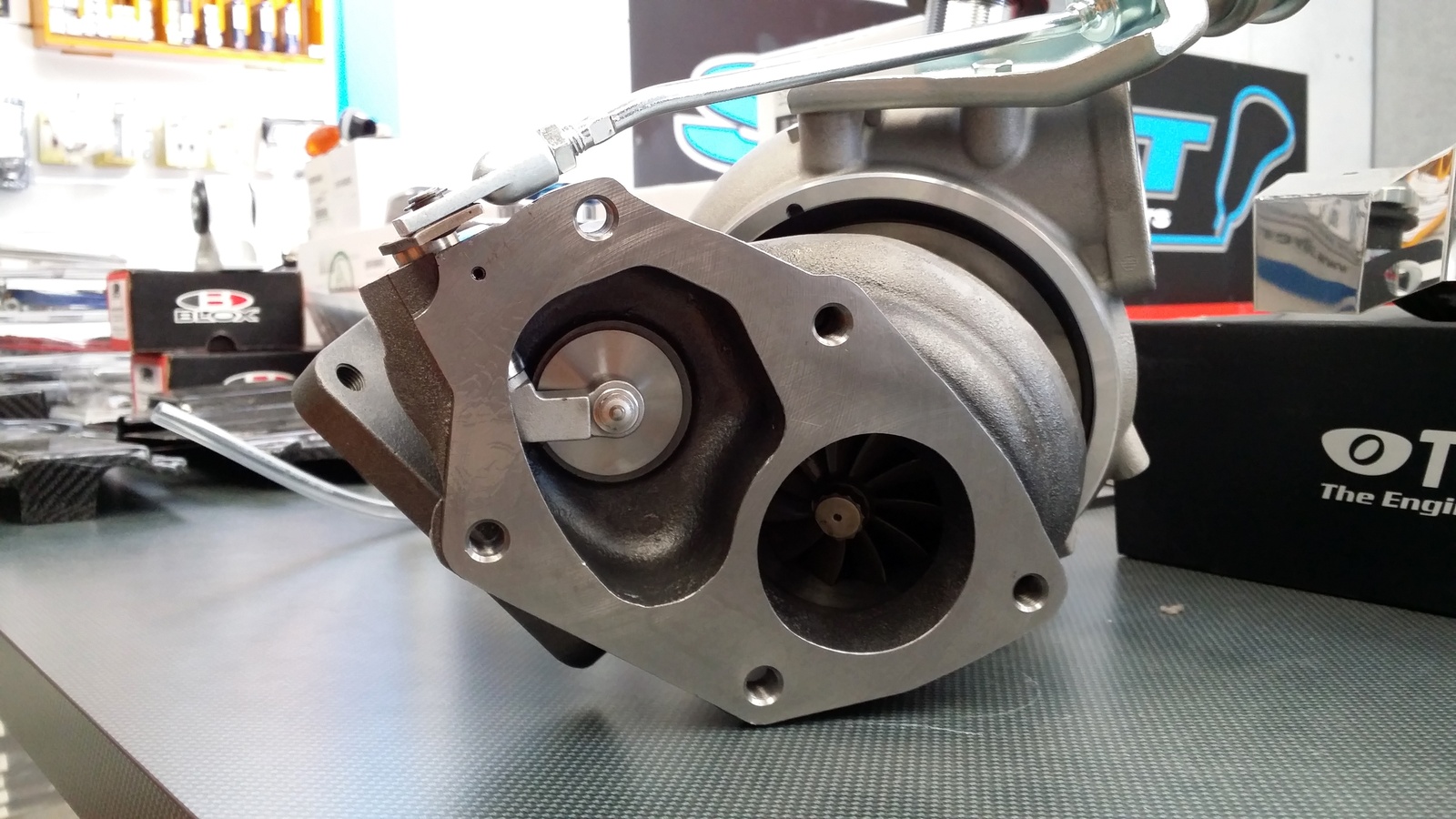

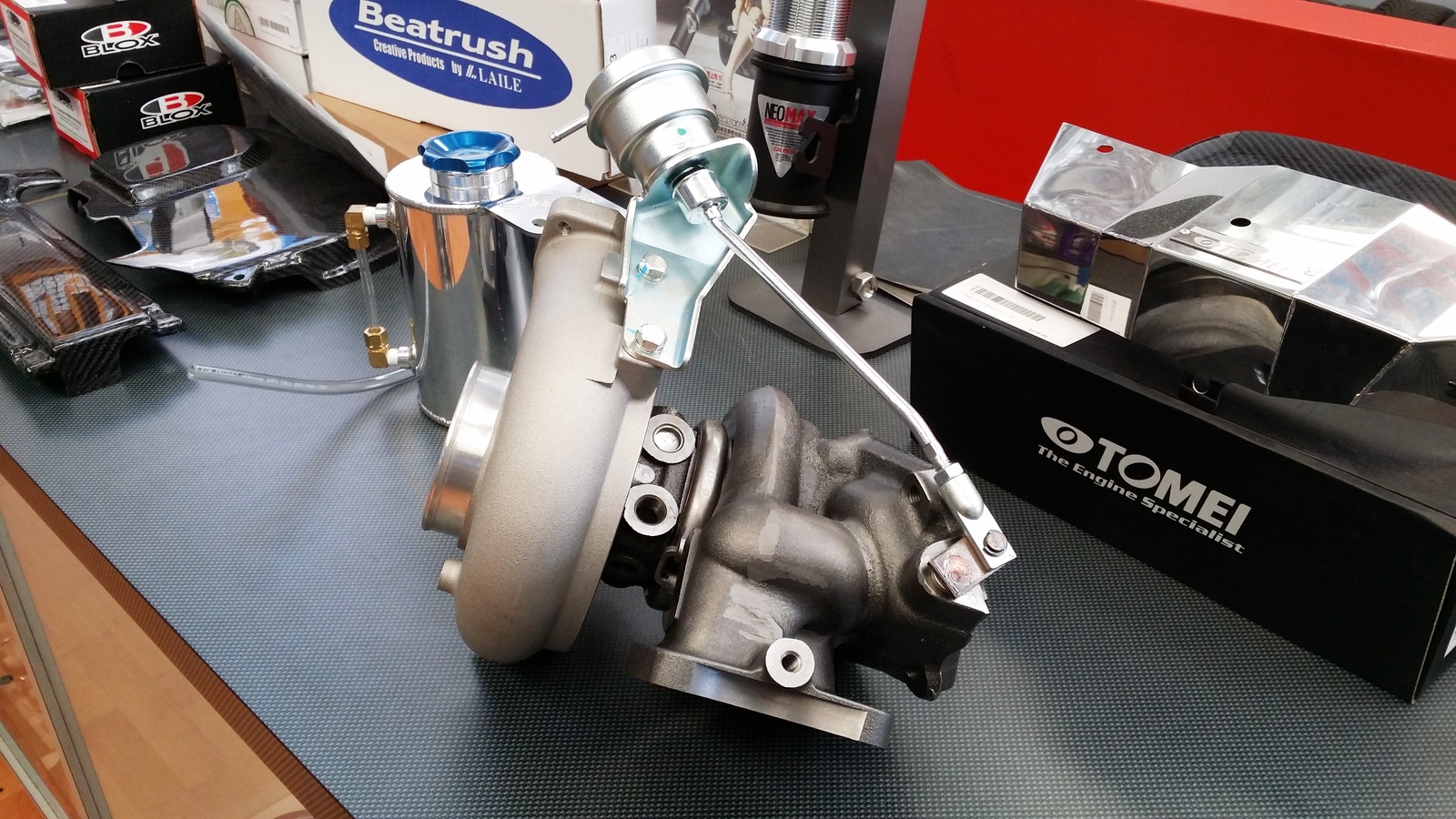

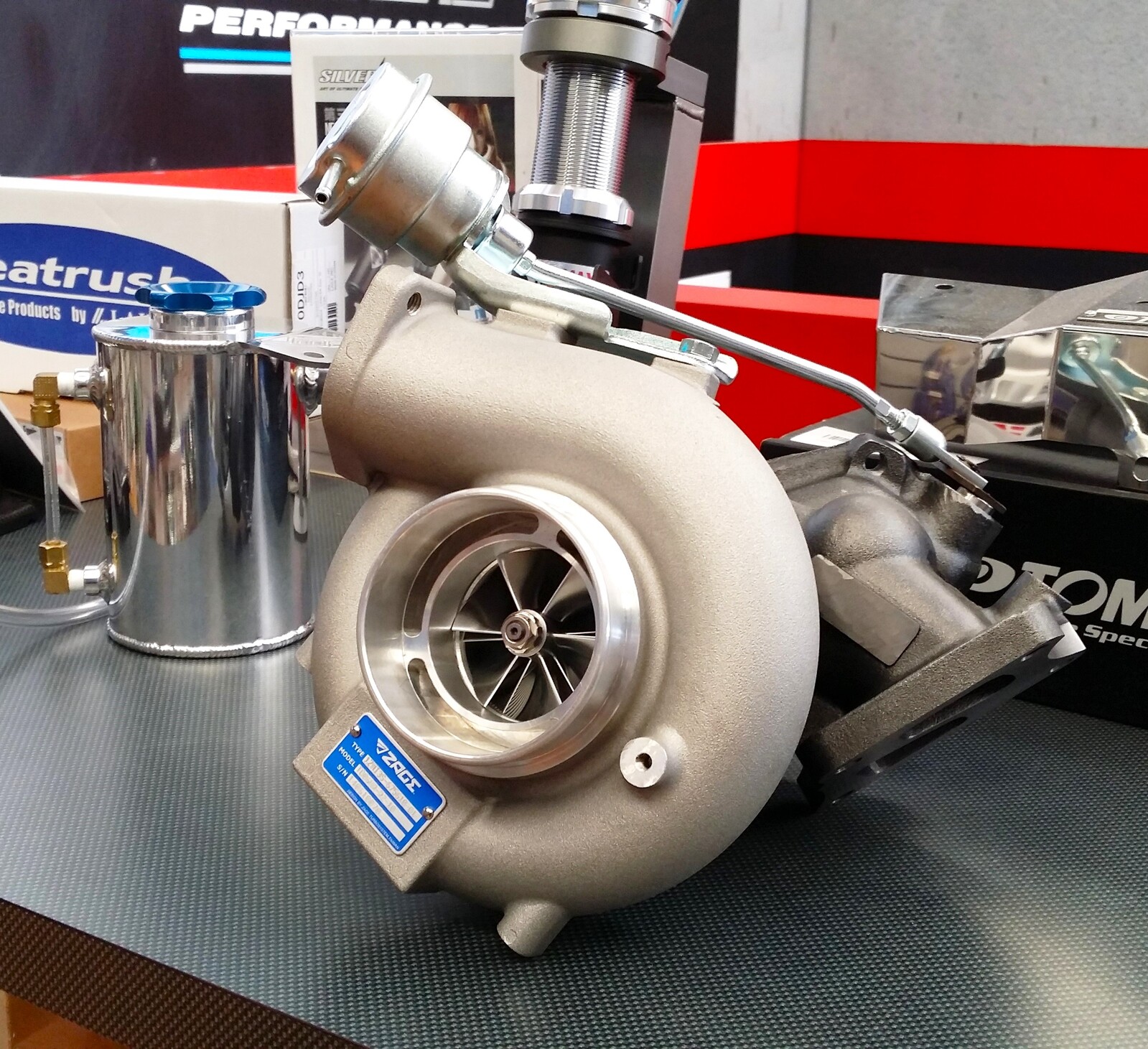

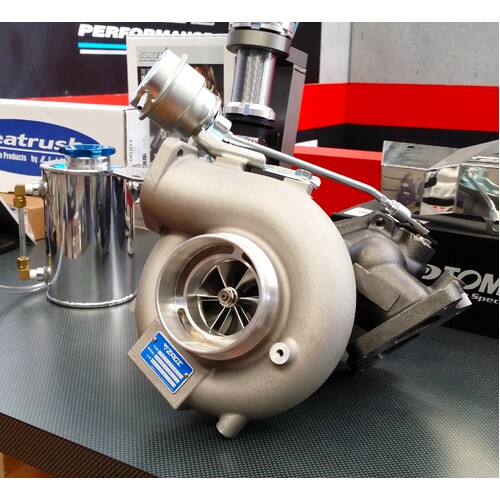

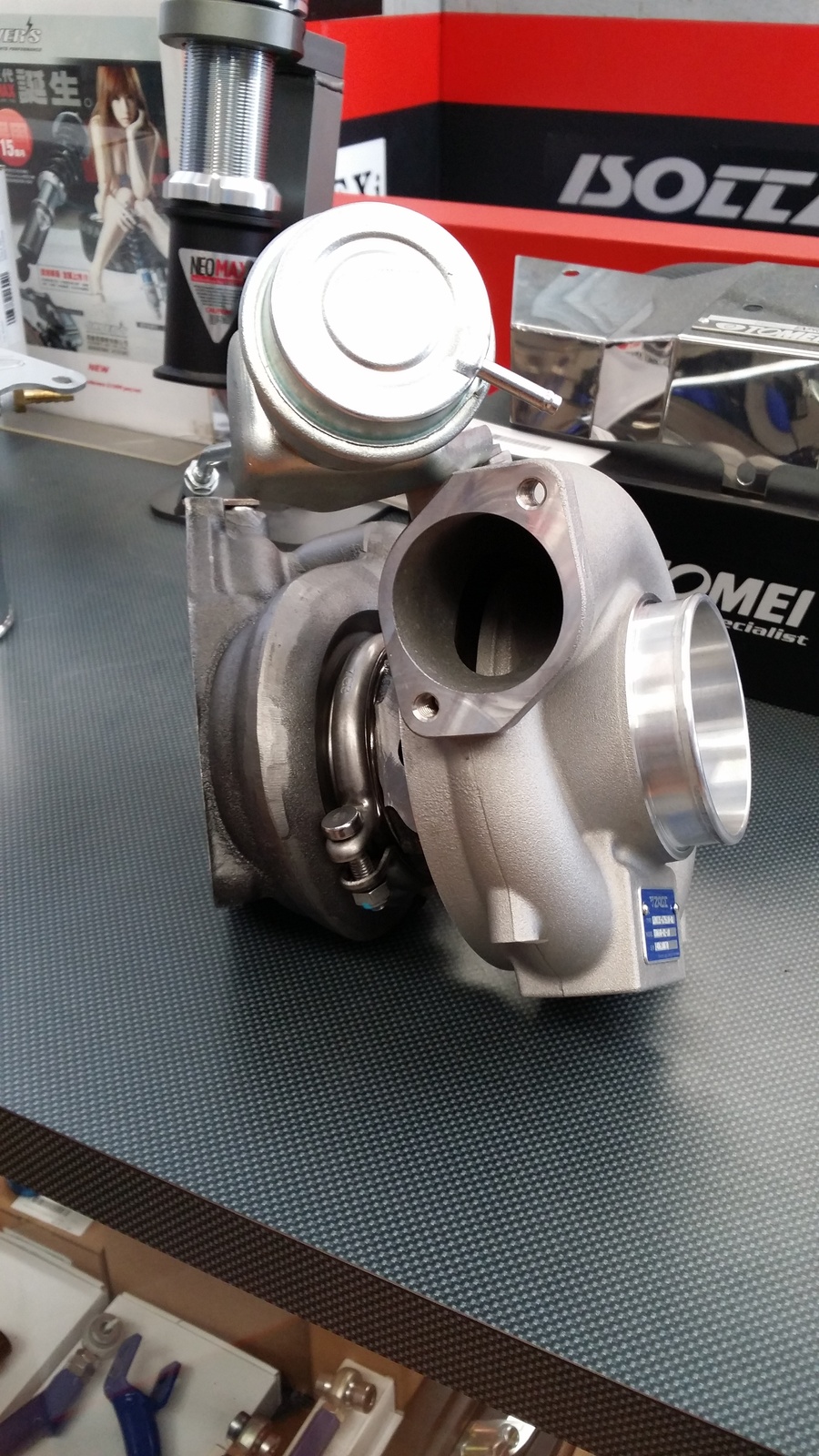

ZAGE TD06H R2 Turbo Billet Wheel & Anti Surge - Mitsubishi EVO 5 6 7 8 9 Wagon.

Features:

  • R2 billet compressor wheel.
  • Anti-Surge front compressor housing with 80mm inlet.
  • 1.2 Bar Actuator.
  • Metal Dump pipe gasket.
  • Metal Turbo to manifold gasket.
  • Oil drain and gasket.

Turbo Specifications:

  • Journal Bearing.
  • Turbine wheel Diameter 58/67mm, A/R 77, 10.5cm² Nozzle area
  • R2 Billet Compressor wheel, Diameter 56/75mm

Note:  EVO 9 Fitting kit required when fitting to EVO 5 6 7 8, and matching turbo intake hose.

(1ZMI3S-675610-01)

SKU 1ZMI3S-675610-01
Brand Zage Turbo Systems
Shipping Weight 7.0000kg
Shipping Width 0.300m
Shipping Height 0.400m
Shipping Length 0.350m
Shipping Cubic 0.042000000m3
